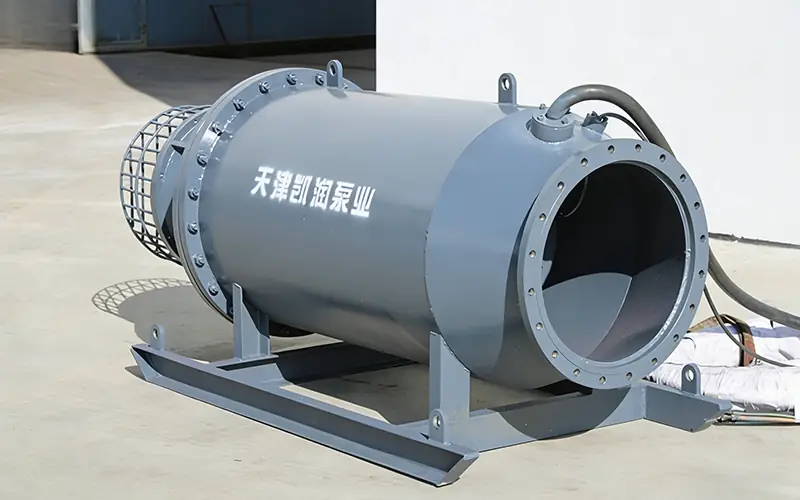

Horizontal axial flow pump with suction strainer and mounting base
Horizontal axial flow pump with suction strainer and mounting base

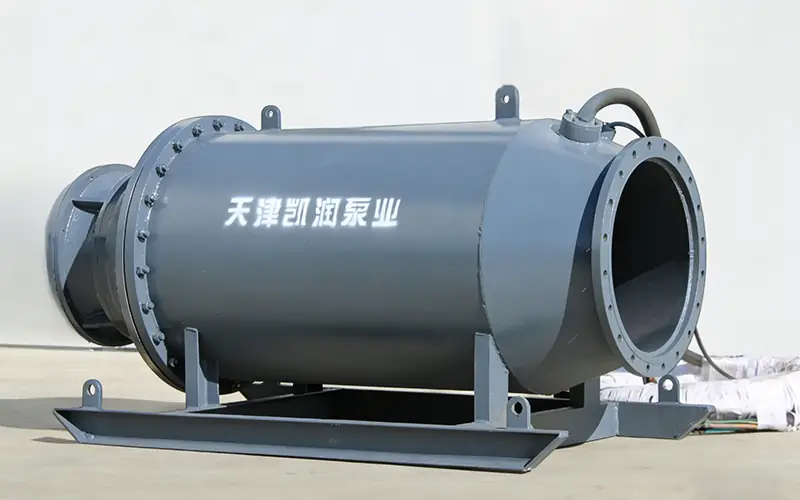

Horizontal axial flow pump with mounting base and large outlet flange

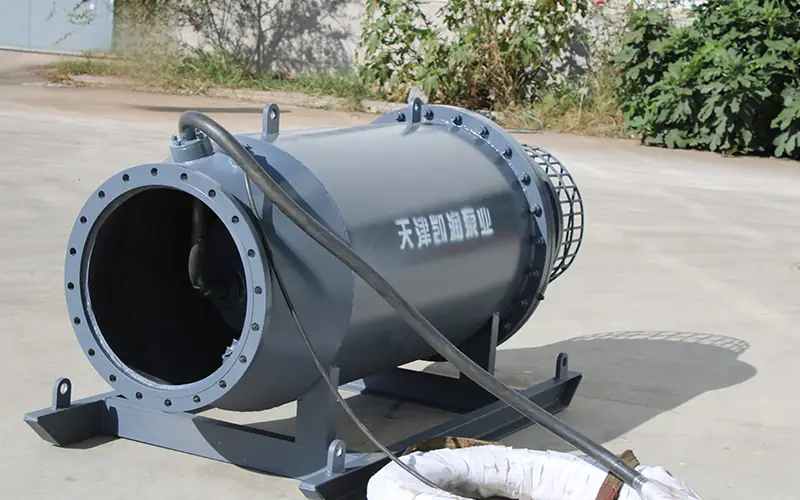

Horizontal axial flow pump with suction strainer and large inlet flange

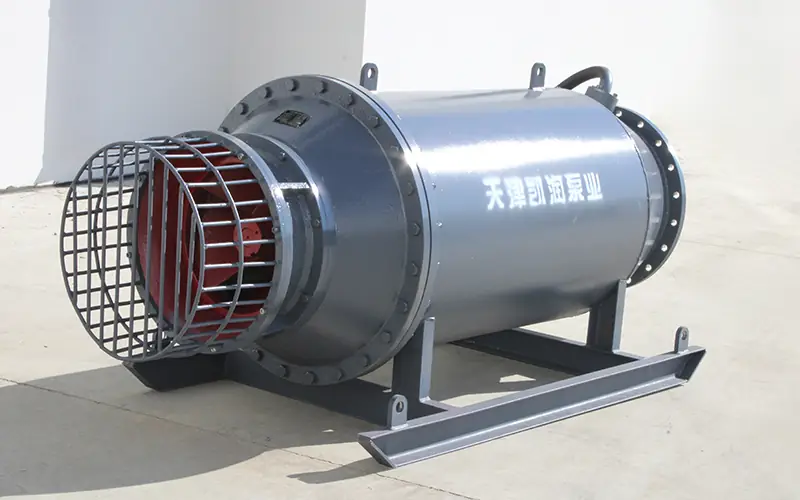

Horizontal axial flow pump with suction strainer and mounting base

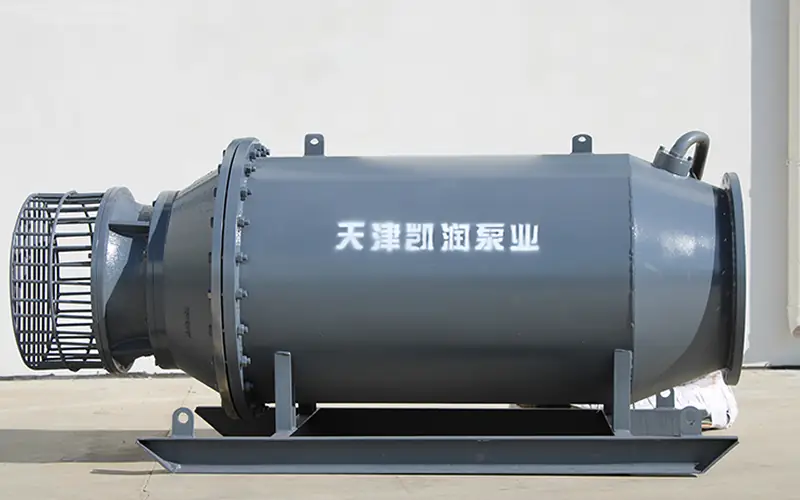

Horizontal axial flow pump with suction strainer and mounting base front view

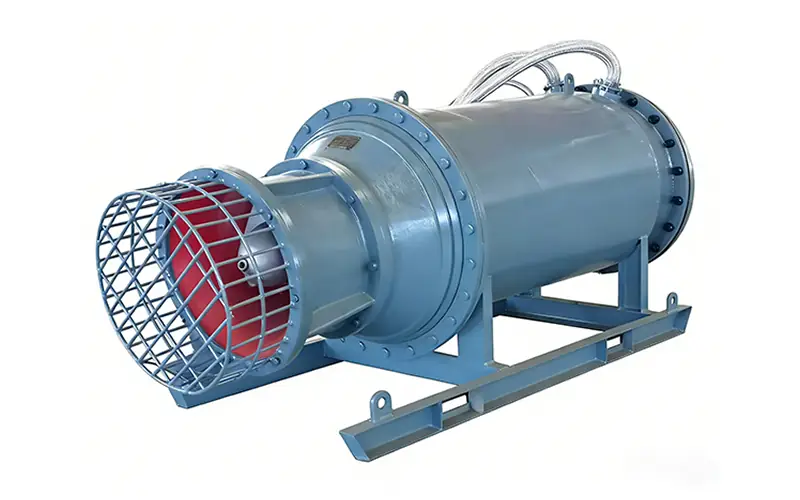

Blue horizontal axial flow pump with suction strainer and mounting base

Horizontal Axial Flow Pump

Horizontal axial flow pump is a fluid conveying equipment that connects the submersible motor and the impeller of the axial flow pump coaxially, allowing it to operate underwater and with the pump body placed horizontally.

Request a Quote Download PDF

Horizontal axial flow pump

horizontal axial flow pump

Horizontal axial flow pump is a fluid conveying equipment that connects the submersible motor and the impeller of the axial flow pump coaxially, allowing it to operate underwater and with the pump body placed horizontally.

Parameter information sheet

Model Vane Angel Capacity (m3/h) Head (m) Power (KW) Speed (r/min) Efficiency (%) Outer diameter of impeller (mm)
350QZ-50G 0° 1173.6 10.1 55 1450 81.8 300
350QZ-100D 0° 802.9 1.92 11 1450 79.5 300
500QZ-50G 0° 2677 10.38 110 980 83.3 450
500QZ-75D 0° 2300 4.13 45 740 81.9 450
500QZ-100D 0° 2046 2.5 30 740 81.5 450
500QZ-135D 0° 2205 1.9 22 740 80.5 450
600QZ-50 0° 3690.7 8.84 132 740 83.7 550
600QZ-75 0° 4200 6.16 110 740 83.3 550
700QZ-75 0° 5451.5 7.33 160 740 83.9 600
700QZ-100 0° 4850 4.39 110 740 83.5 600
700QZ-160 0° 5291 2.6 75 740 81.4 600
800QZ-100 0° 6140.9 3.79 110 590 83.8 700
800QZ-135 0° 6617 2.93 110 590 83 700
800QZ-160 0° 6699 2.25 75 590 81.7 700
900QZ-75 0° 8489 7.28 250 590 84.6 750
900QZ-100 0° 9131 3.86 160 490 84.4 850
900QZ-160D 0° 9961.5 2.29 110 490 82.4 850
1000QZ-35 0° 11571.5 15.67 630 490 85.8 870
1000QZ-75 0° 11005 6.76 315 490 84.9 870
1200QZ-135 0° 13737.2 3.72 250 490 84.4 950
1300QZ-50 0° 16868.8 9.66 630 370 86 1150
1400QZ-100 0° 19401.3 4.39 400 370 85.7 1200
1600QZ-75 0° 32616.3 7.09 900 295 86.5 1480

Structural of horizontal axial flow pump

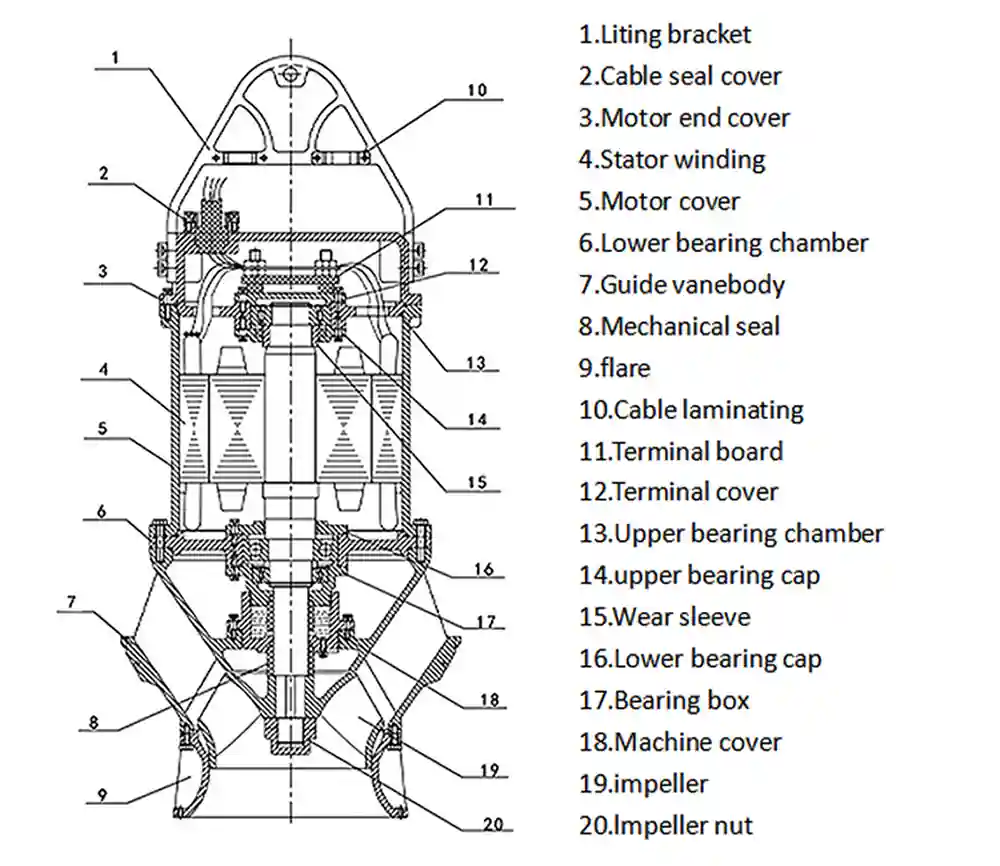

horizontal axial flow pump

The size of horizontal axial flow pump could be customized according to your requirement.

Performance Advantages of horizontal axial flow pump

Flexible Installation & Maintenance

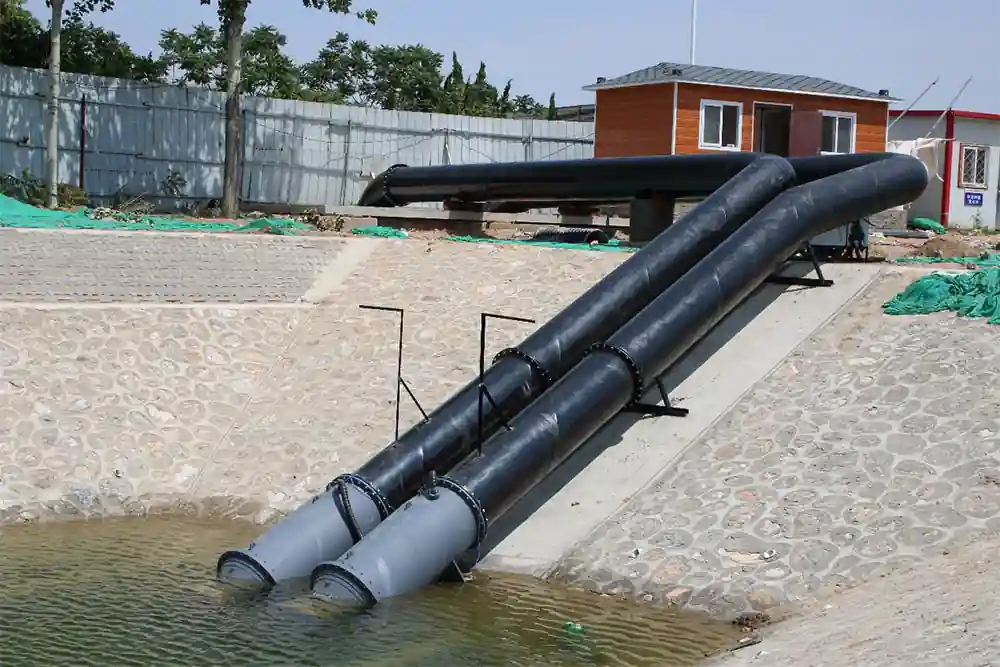

The sled-type base eliminates the need for fixed foundation construction, making it suitable for temporary water transfer tasks such as emergency flood control and drainage. When maintenance is required, the entire unit can be hoisted out of the water, simplifying the repair process and minimizing downtime.
Stable Operation with Low Noise

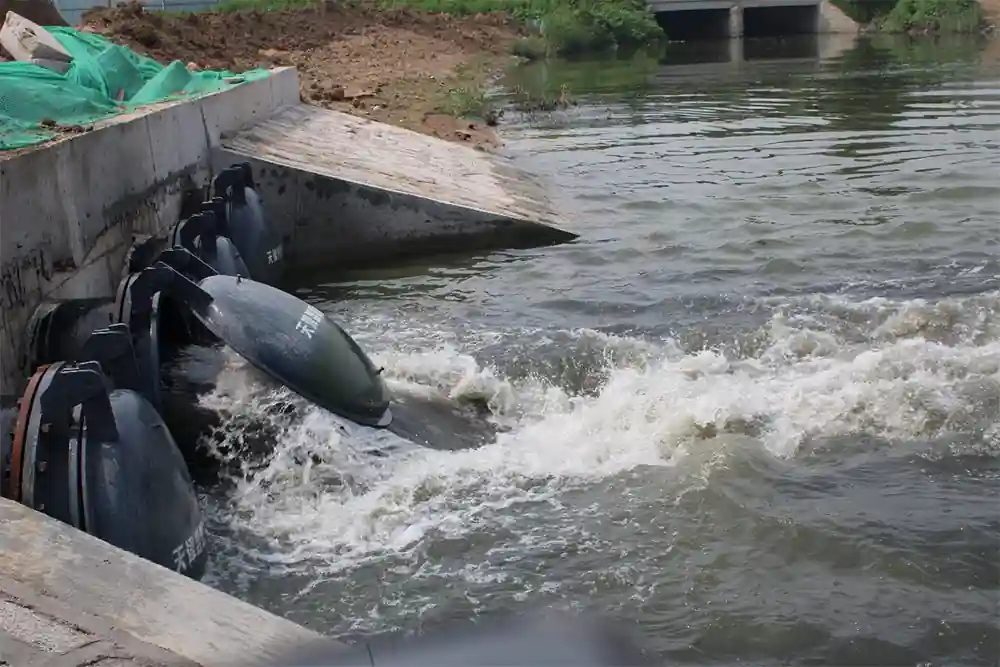

Since the entire unit operates underwater, it produces extremely low noise, avoiding noise pollution to the surrounding environment. The motor is cooled by the surrounding water, resulting in good heat dissipation performance and stable operation even under continuous working conditions.
Adaptability to Complex Working Conditions
The pump can operate normally in water containing a certain amount of sediment, and its corrosion-resistant version can be applied to industrial wastewater treatment scenarios, demonstrating strong adaptability to different media.

Characteristics of horizontal axial flow pump

1. Integrated Submersible Design

The pump and motor are coaxially connected as a single unit, eliminating the need for complex shaft alignment and transmission components. The fully sealed structure effectively prevents water from infiltrating the motor cavity, ensuring reliable operation even in long-term underwater service.

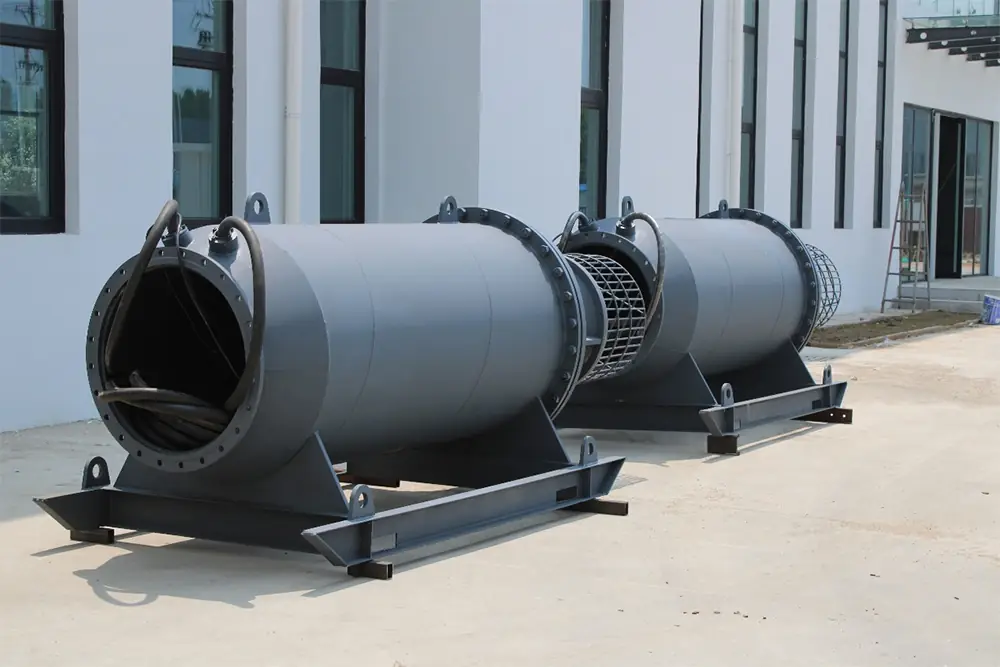

horizontal axial flow pump

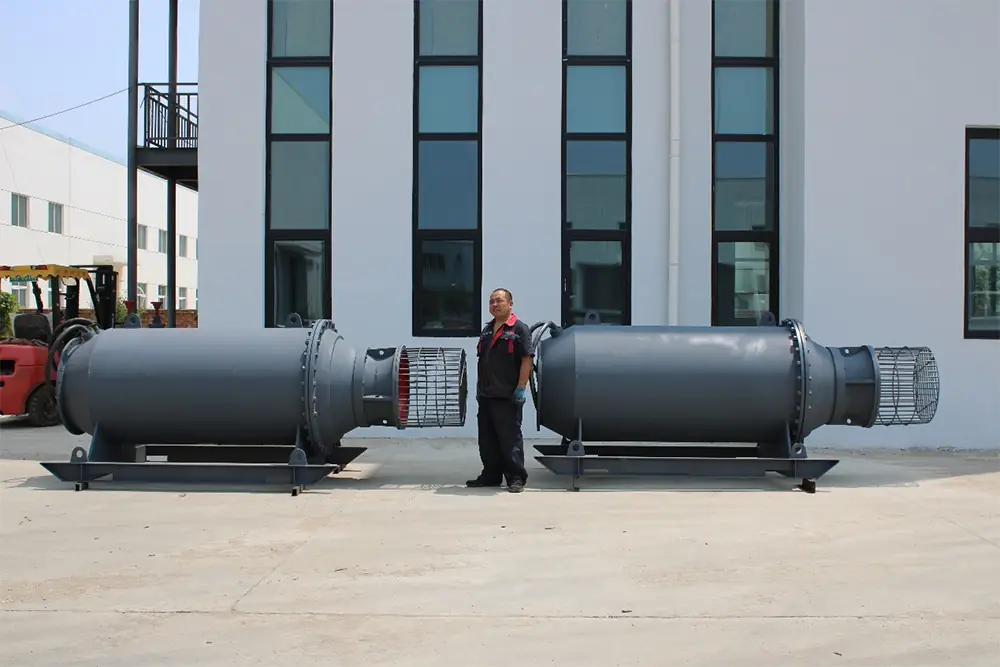

horizontal axial flow pump

2. Efficient Sealing System

Equipped with a double-layer mechanical seal and a waterproof cable connector, the pump can resist the erosion of sediment-laden water or corrosive media in industrial wastewater, extending its service life.

3. Sled-type Base Frame

The base is made of high-strength steel or corrosion-resistant alloy, featuring a sled-like structure that adapts to uneven seabed or pit bottom terrain. It allows for convenient installation and retrieval—installers can directly hoist the pump unit into the water and position it without complex civil engineering foundations, significantly reducing construction and installation costs.

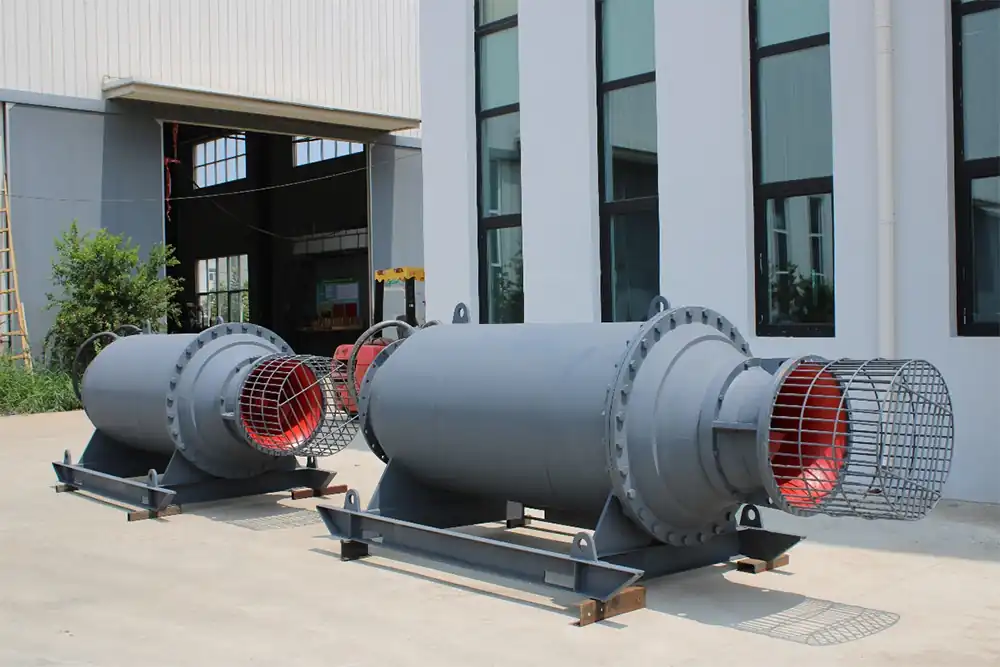

horizontal axial flow pump
horizontal axial flow pump

4. All the material for pump parts can be customized according to customers’ requirement, it is also available for our engineer to recommend the suitable material as your working liquids.

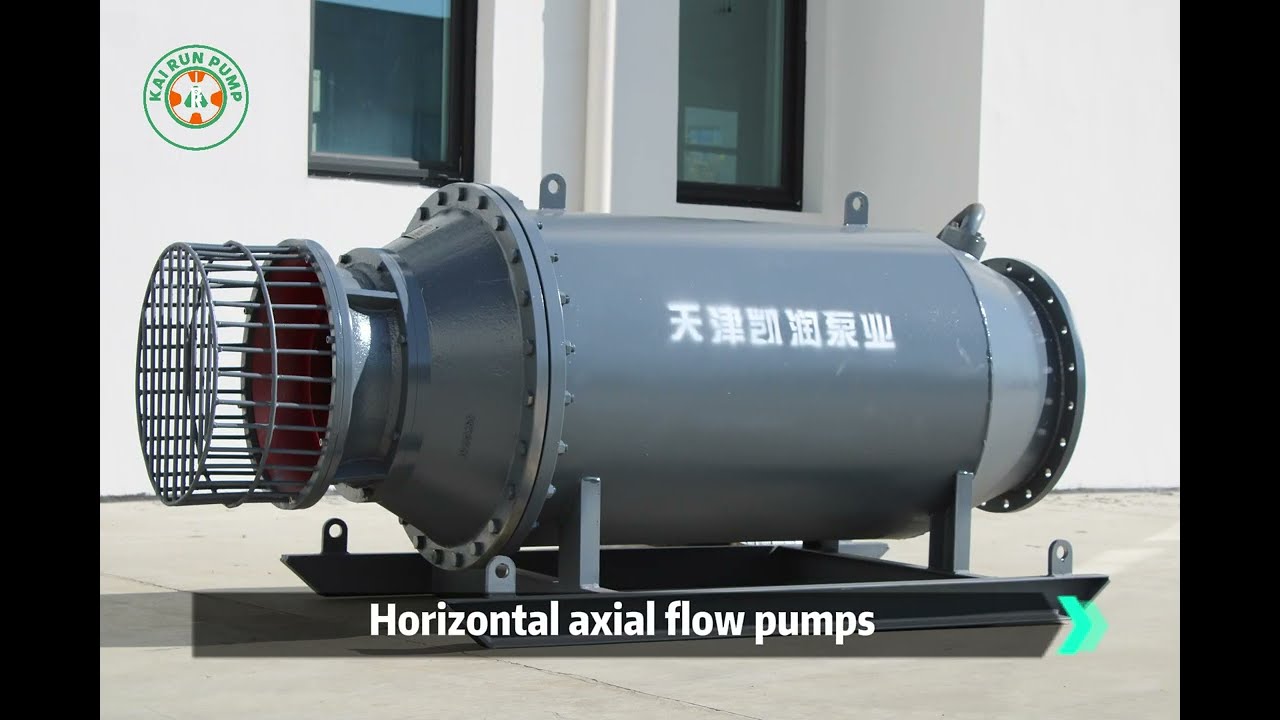

Video
