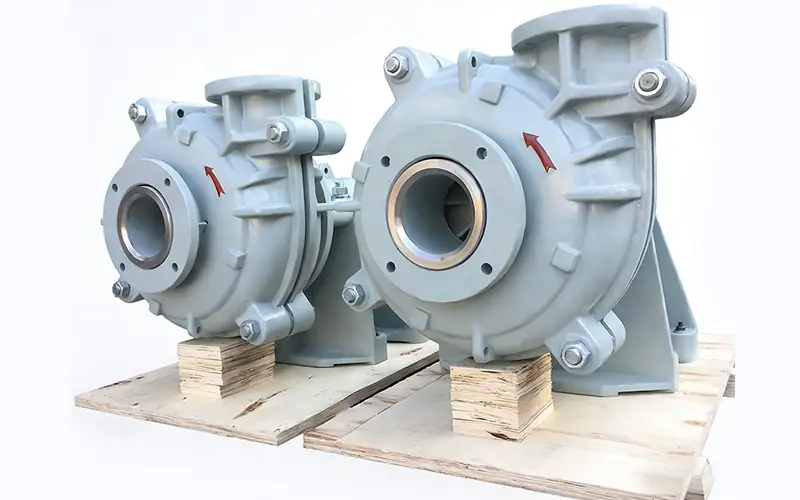

Two industrial horizontal slurry pumps (submersible axial flow pump) on wooden pallets, with red rotation direction arrows-1
Two industrial horizontal slurry pumps (submersible axial flow pump) on wooden pallets, with red rotation direction arrows-1

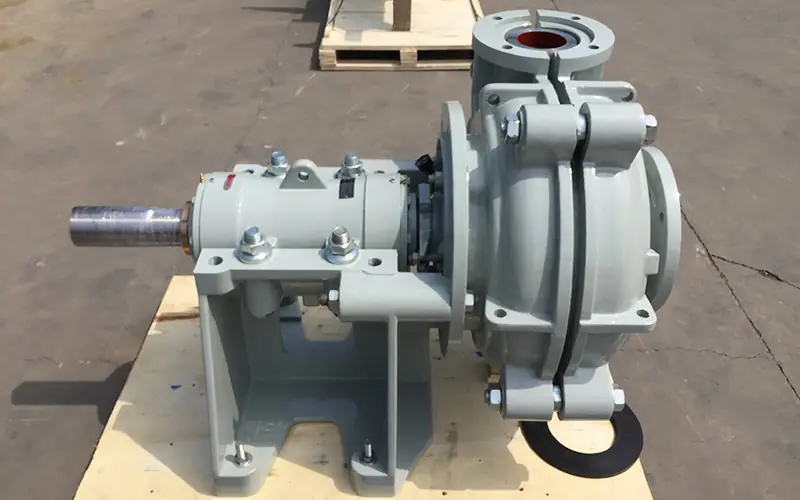

Horizontal slurry pump (industrial centrifugal slurry pump) on wooden pallet, side view with shaft and flanged connections-1

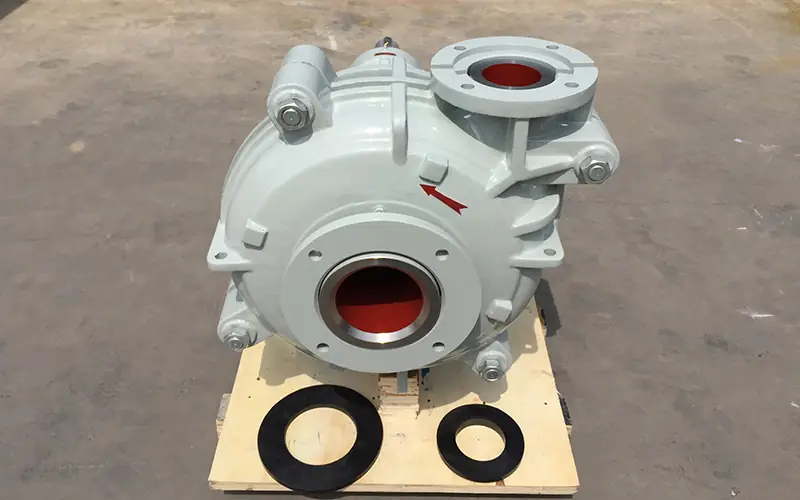

Light gray horizontal slurry pump with red rotation arrow, placed on wooden pallet with gaskets.

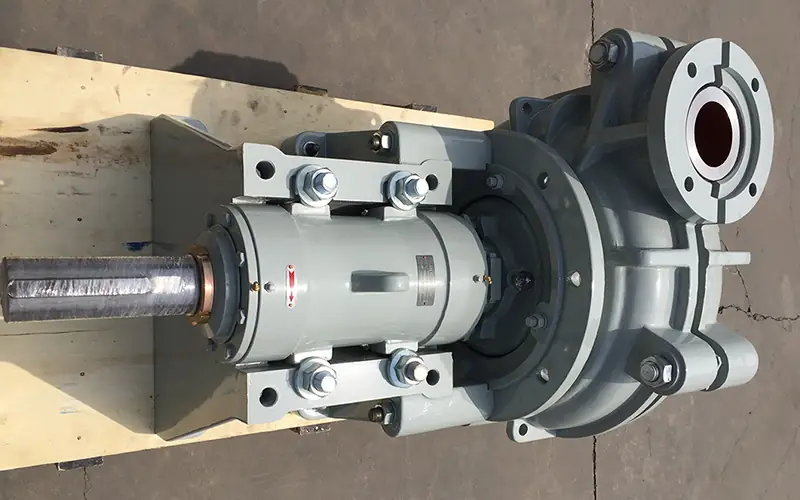

Gray horizontal slurry pump with extended shaft and flanged connections, on wooden pallet.

Horizontal slurry pump

Kairun's AH series comprises single-stage, single-suction, cantilevered, double-casing horizontal centrifugal pumps engineered for handling fluids containing solid particles. For highly abrasive or corrosive liquids, the optimal pump configuration and materials can be selected based on the specific application to ensure reliable, trouble-free performance. These pumps are purpose-built for a broad range of slurry transport duties, from light to heavy loads.

Request a Quote Download PDF

Horizontal slurry pump

Kairun’s AH series comprises single-stage, single-suction, cantilevered, double-casing horizontal centrifugal pumps engineered for handling fluids containing solid particles. For highly abrasive or corrosive liquids, the optimal pump configuration and materials can be selected based on the specific application to ensure reliable, trouble-free performance. These pumps are purpose-built for a broad range of slurry transport duties, from light to heavy loads.

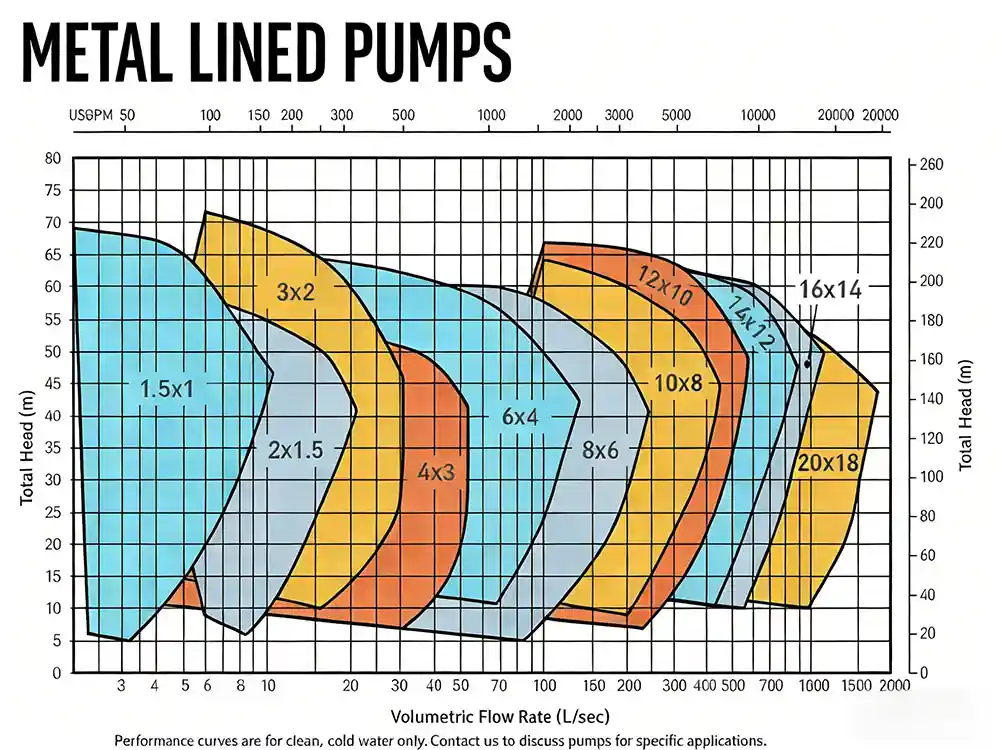

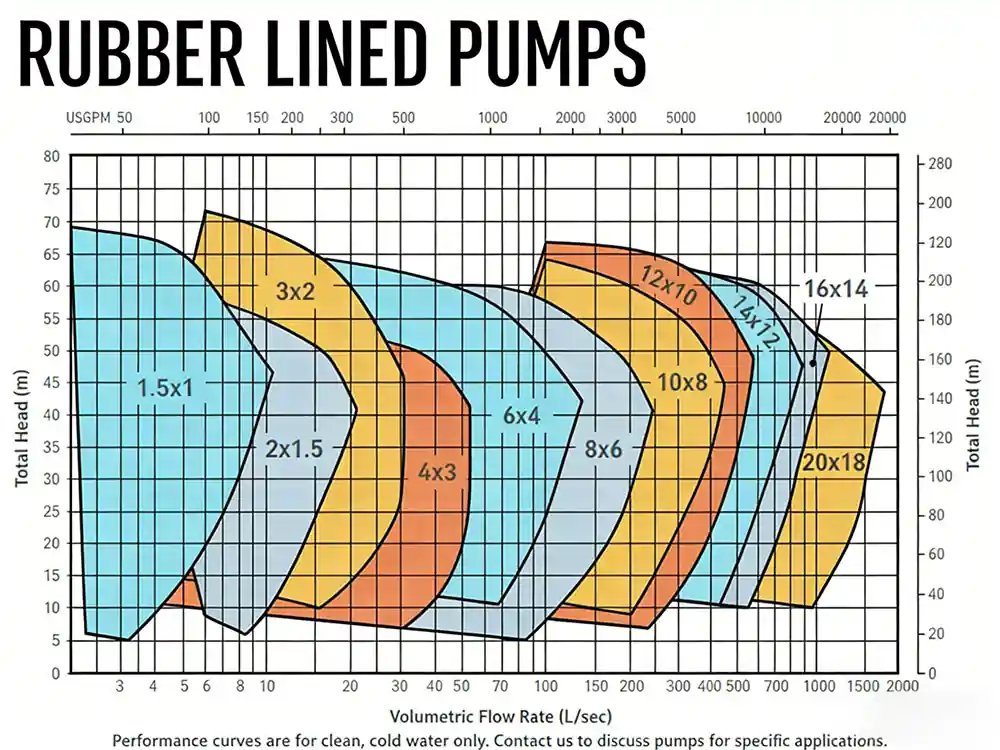

Specification

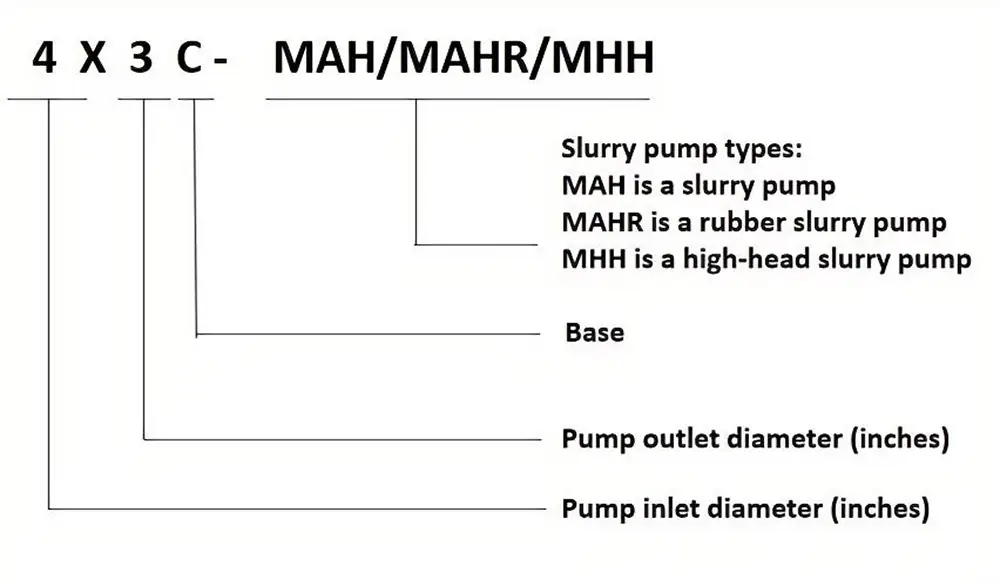

Model Max Power Capacity Head  No.of Vanes Max particle Size
(kw) (m3/h) (L/S) (m) (Pcs) (mm)
1.5x1B-MAH 15 3.6-21.6 1-6 6-65 5 14
1.5x1B-MAHR 15 3.6-25.2 1-7 10-40 5 20
1.5x2B-MAH 15 7.2-48.6 2-13.5 5-62 5 19
1.5x2B-MAHR 15 7.2-43.2 2-12 5-35 5 16
2×3C-MAH 30 21.6-88.56 6-24.6 15-40 5 21
2×3C-MAHR 30 21.6-90 6-25 15-40 5 21
4x3C-MAH 30 28.8-158.4 8-44 7-53 5 28
4x3C-MAHR 30 28.8-144 8-40 7-35 5 28
6x4D-MAH 60 72-331.2 20-92 11-64 5 44
6x4E-MAHR 120 72-324 20-90 15-40 5 33
8x6E-MAH 120 126-720 35-200 6-62 5 63
8x6E-MAHR 120 144-720 40-200 10-50 5 59
10x8ST-MAH 560 216-1051.2 60-292 9-64 5 76
10x8ST-MAHR 460 216-900 60-250 15-50 5 76
12x10ST-MAH 560 316.8-1620 88-450 10-66 5 86
12x10ST-MAHR 560 180-1440 50-400 10-45 5 86
14x12ST-MAH 560 504-2455.2 140-682 10-75 5 90
horizontal slurry pump

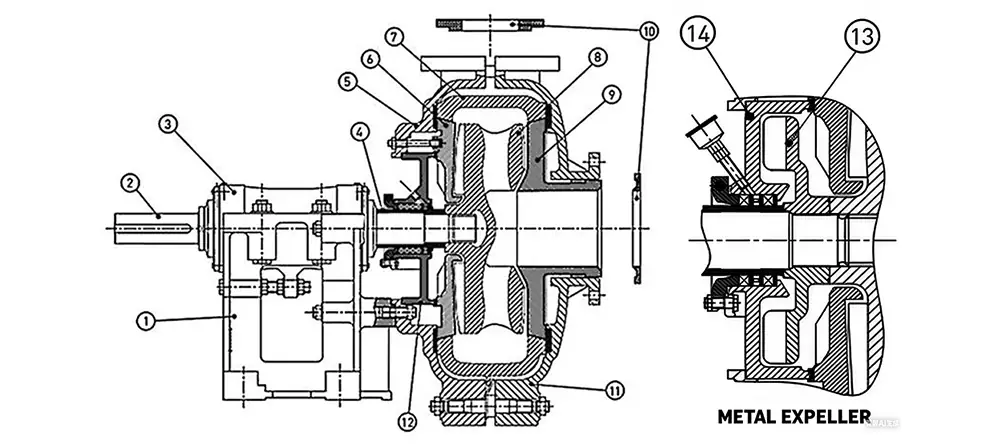

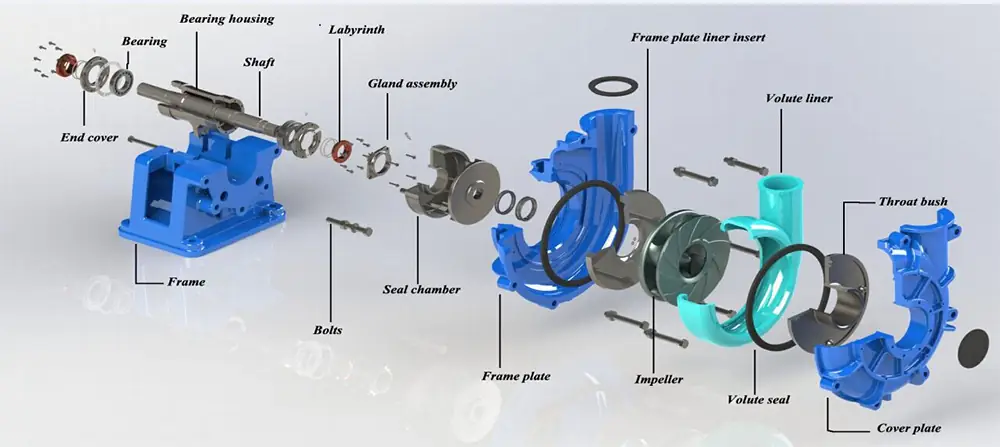

No. Part Description Material Specification
1 Base Ductile iron
2 Shaft 4140 High Tensile Steel
3 Bearing Assembly Ductile iron
4 Shaft Sleeve 420 Stainless Steel
5 Pump Casing Ductile iron
6 Frame Plate Liner 27%Chrome White lron
7 Volute Liner 27%Chrome White Iron
8 Impeller 27%Chrome White Iron
9 Throat Bush 27%Chrome White Iron
10 Joint Rings Rubber
11 Cover Plate Ductile iron
12 Stuffing Box Ductile iron
13 Expeller 27%Chrome White Iron
14 Expeller Ring 27%Chrome White Iron
  Bolts Zinc Plated Steel
  0-rings Nitrile Rubber
  Seals Rubber

Feature

Dual-casing structure with wear-resistant and replaceable lining for low maintenance costs.
High-chromium alloy/rubber lining for wear resistance, corrosion resistance, and erosion resistance.
Large-channel impeller for unclogging solid-liquid slurry conveying.
Multiple sealing methods + auxiliary impeller protection for leak pretention and stable operation.

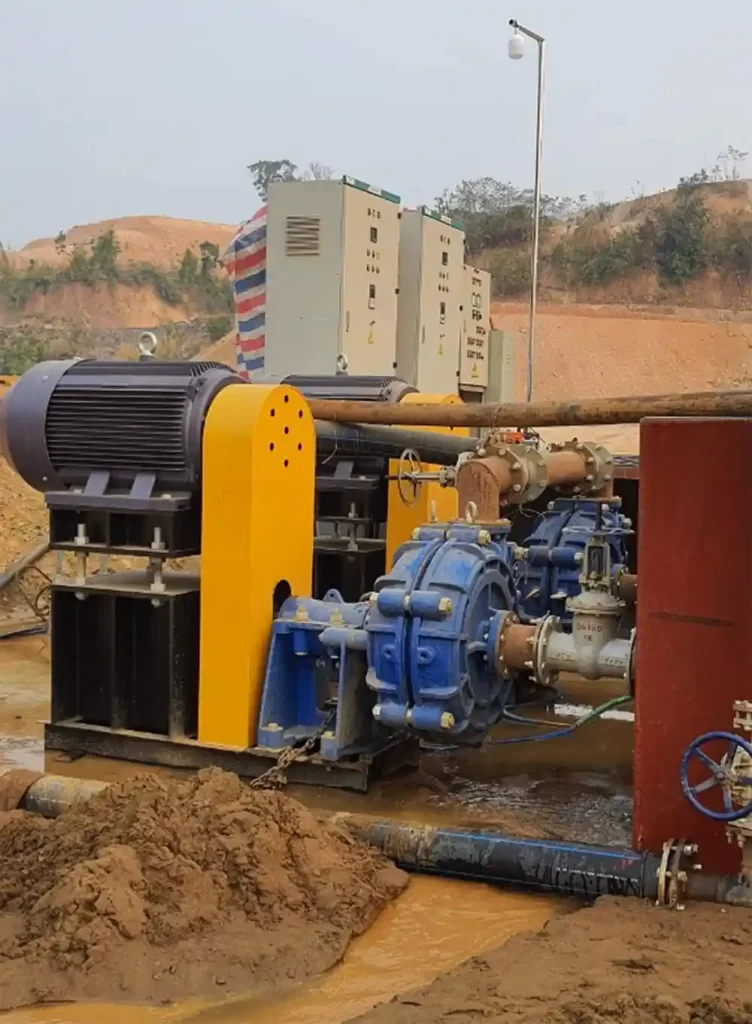

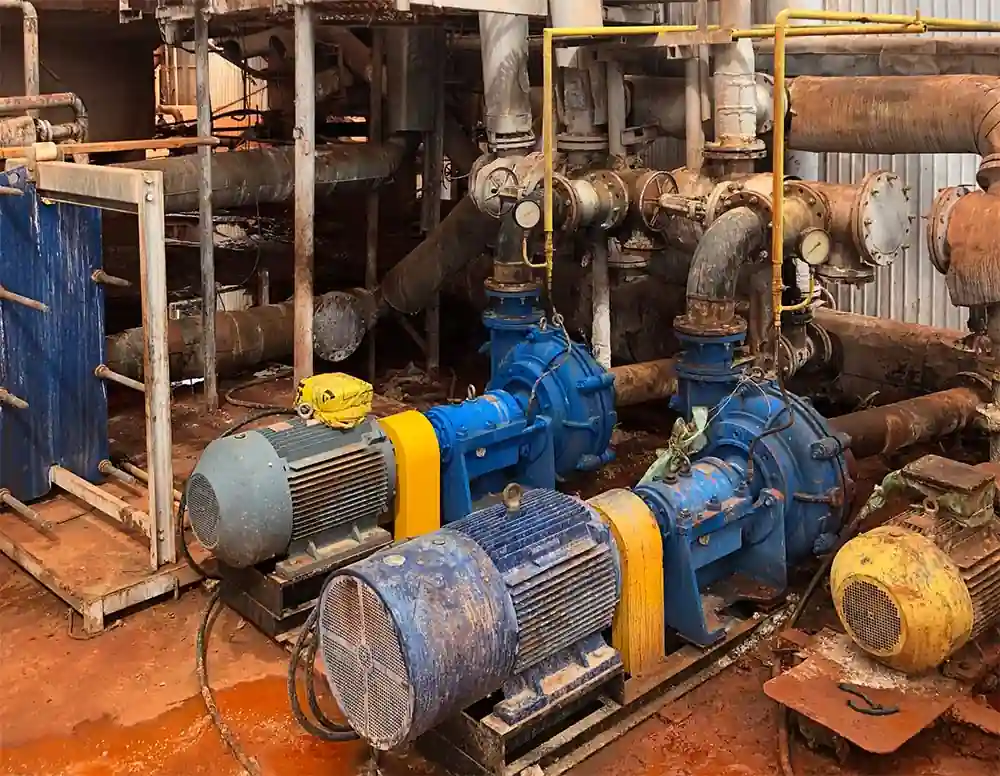

Suitable for harsh working conditions in mining, metallurgy, power, and other industries.

Application

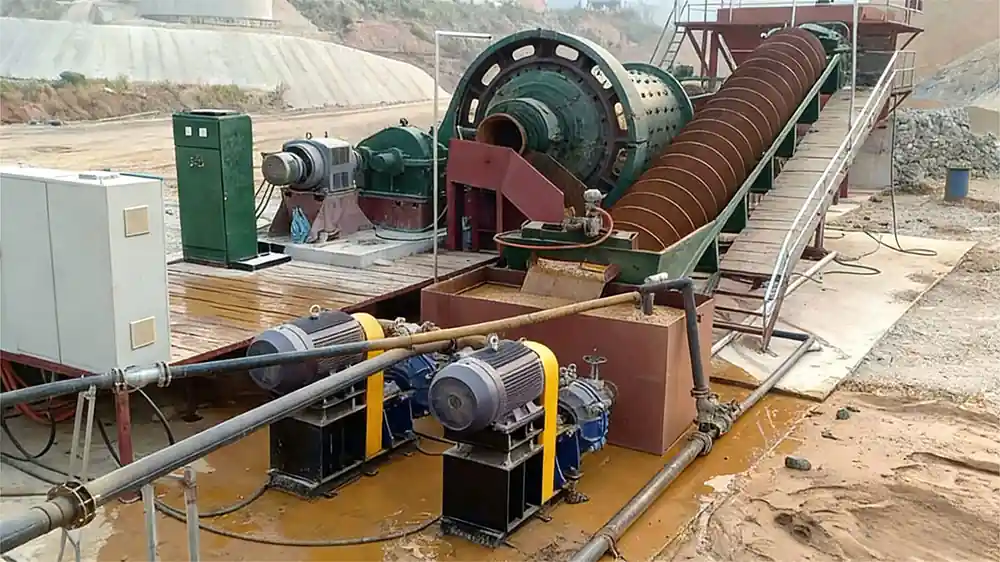

1. Mining: Tailings, slurry, and mud conveying

2. Metallurgy: Smelting waste slag and slurry conveying

3. Power: Fly ash, slag, and ash slurry conveying

4. Coal: Coal slime and washed coal slurry conveying

5. Chemical: Corrosive solid-liquid slurry conveying

6. Environmental/Municipal: Sewage treatment and sludge conveying

7. Building Materials: Sand and gravel slurry and cement slurry conveying

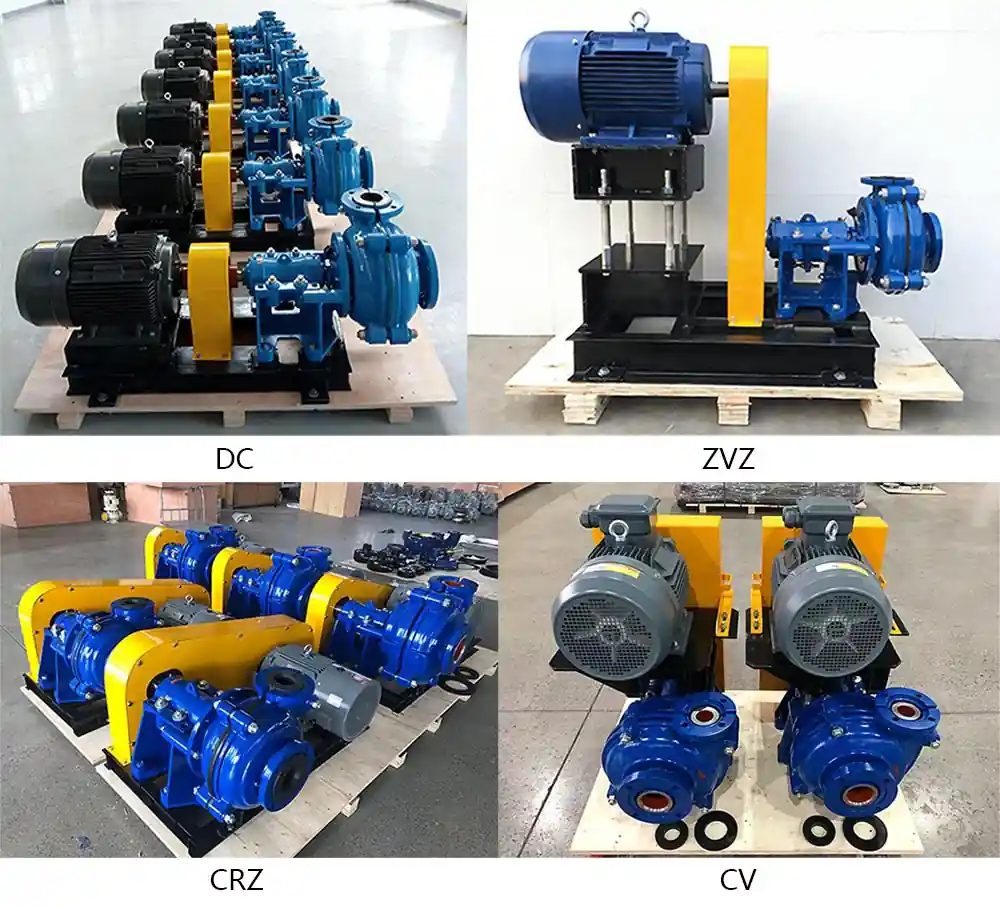

Driving method

Direct drive (DC): 1. Reliable operation and low failure rate; 2. No slippage and high efficiency.
Belt drive (CV/ZV/CRZ): Easy to change pump operating parameters, wide range of pump selection, and easy to achieve the required operating parameters

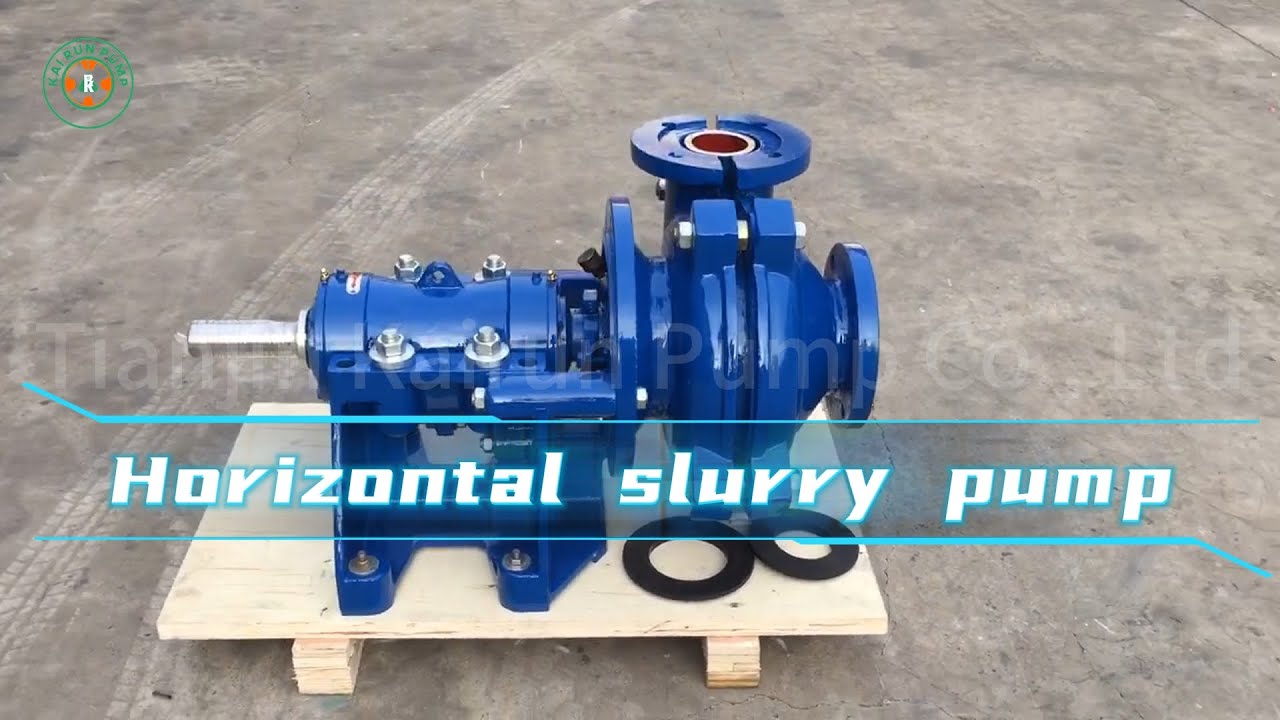

Video
