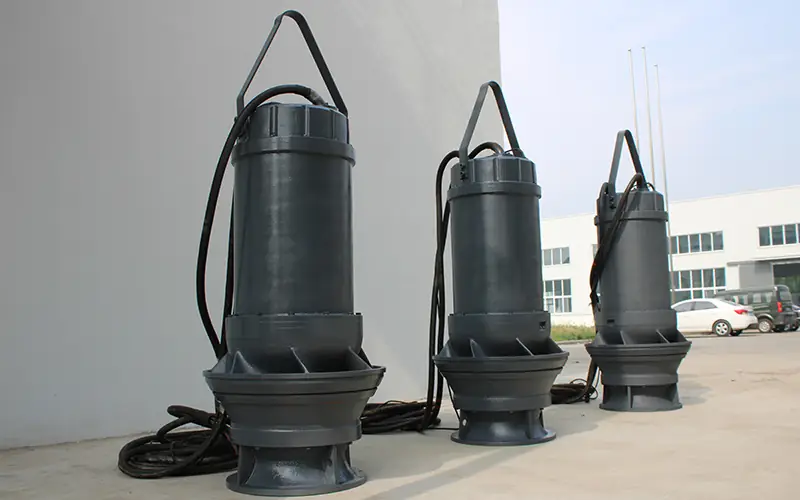

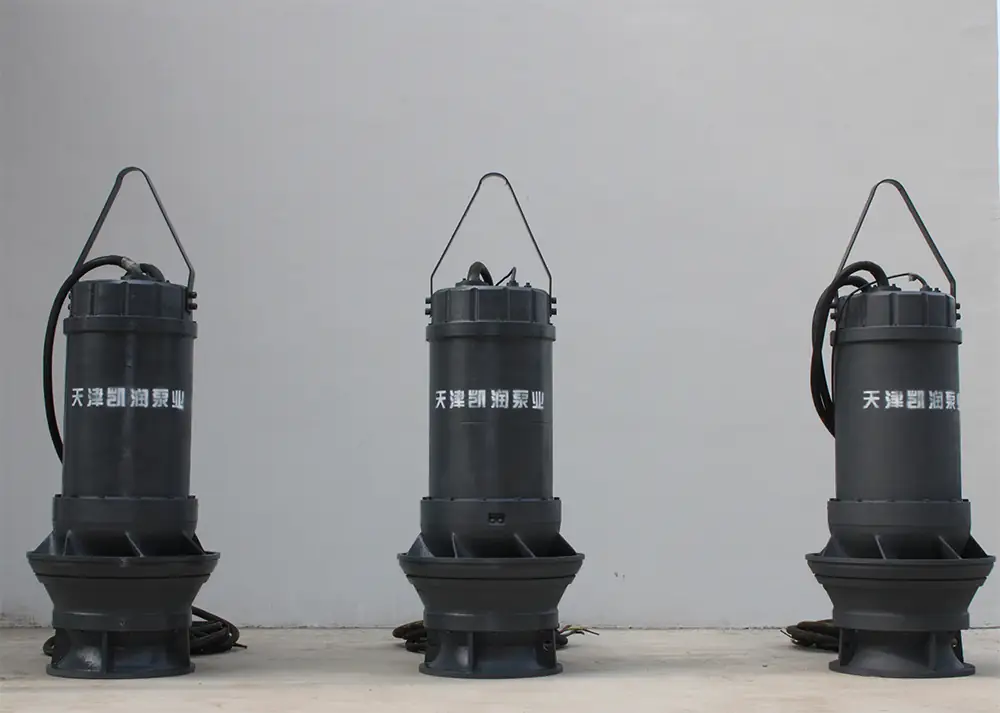

Three submersible axial flow pumps for industrial drainage

Submersible Mixed Flow Pump

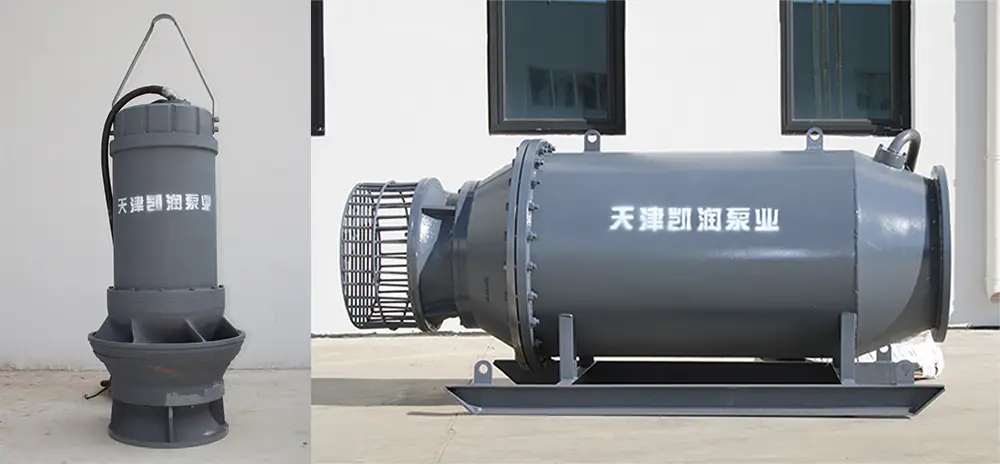

The submersible mixed flow pump from the QH series are single-stage centrifugal pumps that have a submersible motor and are equipped with an mixed flow impeller. The pump itself is a high-flow submersible pump suitable for pumping large quantities of water at low heads. The pump can reach an impressive flow rate of up to 20,000 m3/h.

submersible mixed flow pump

Product	Submersible mixedl flow pump
Model	QH
Medium	Water/sewage water/flood water
Flow rate	500-20,000m³/h
Head	2-25m
Temperature	-5-80 ℃
Speed	980/740/780/590 r/min
Outlet	2-30 inches
Brand	Kairun
Warranty	1year
Shaft seal	Merchanical seal
Motor	Immersion
Protection class	IP68
Protect	Overload/Leakage/Overheating
Installation method	Vertical/Horizontal/Wellbore/Angled Installation
Power	55-2200kW
Voltage	380V/660V/3kV/6KV/10KV/Customize
Frequency	50hz/60hz
Customization	ODM/OEM
Customize	Material/Color/Cable/Voltage/Frequency/Performance curve

Specification

Model	Angel of Vane	Capacity (m3/h)	Head(m)	Power(kw)	Speed(r/min)	Efficiency(%)	Out dia of impeller(mm)
350QH-35	0°	1404	16.32	90	980	82	300
350QH-72	0°	837	2.87	15	980	80	300
500QH-40	0°	3200	16.55	200	980	83	450
500QH-72	0°	2512	8.57	90	980	81.6	450
600QH-35	0°	4415	14.29	250	740	84	550
600QH-40	0°	3675	16.67	250	740	80	550
600QH-72	0°	4143	4.38	110	740	82	550
700QH-35	0°	6320	13.8	355	740	81.8	600
700QH-40	0°	5732	16.77	355	740	84.7	600
700QH-72	0°	5056	6.54	160	740	84	600
800QH-35	0°	7257	17.85	400	590	80.4	700
800QH-40	0°	8129	12.33	400	590	81.2	700
800QH-72	0°	6401	5.66	185	590	83	700
900QH-35	0°	10791	14.96	630	490	85	850
900QH-40	0°	8926	16.66	560	590	85.3	750
900QH-72	0°	7873	6.5	250	590	84.9	750
1000QH-40	0°	11571	15.46	630	490	85.6	870
1000QH-72	-2°	8871.5	6.09	250	490	85	870
1000QH-72	0°	14139	5.73	450	490	84.3	950
1200QH-72	+4°	15607	8.45	560	490	86	950
1300QH-72	0°	13289	7.19	500	370	86	1150
1300QH-72	+6°	22198	7.79	710	370	85.8	1150
1400QH-72	+2°	21694	7.5	710	370	86.6	1200

Features

High Efficiency & Large Flow Capacity
Optimized impeller design combines axial and radial flow principles, delivering high flow rates with moderate head pressure.
Ideal for applications requiring massive water transfer with minimal energy consumption.

Compact & Space-Saving Design
Fully submersible structure eliminates the need for separate pump houses or complex installations.
Perfect for confined spaces such as wells, tanks, or underground sumps.

Robust & Corrosion-Resistant Construction
Engineered with stainless steel, cast iron, or anti-abrasive materials for longevity in harsh environments (e.g., seawater, wastewater, industrial fluids).
Sealed motor protection (IP68) ensures reliable operation even under continuous submersion.

Low Maintenance & Easy Operation
No priming required—submersion enables instant startup.
Minimal moving parts reduce wear and simplify servicing.

Versatile Performance Range
Adaptable to varying water levels and dynamic conditions without cavitation risks.
Customizable configurations (e.g., discharge orientation, power options) for specific projects.

Environmentally Friendly
Quiet operation with low vibration, suitable for eco-sensitive areas.
Energy-efficient motors comply with international standards (e.g., IE3/IE4).
