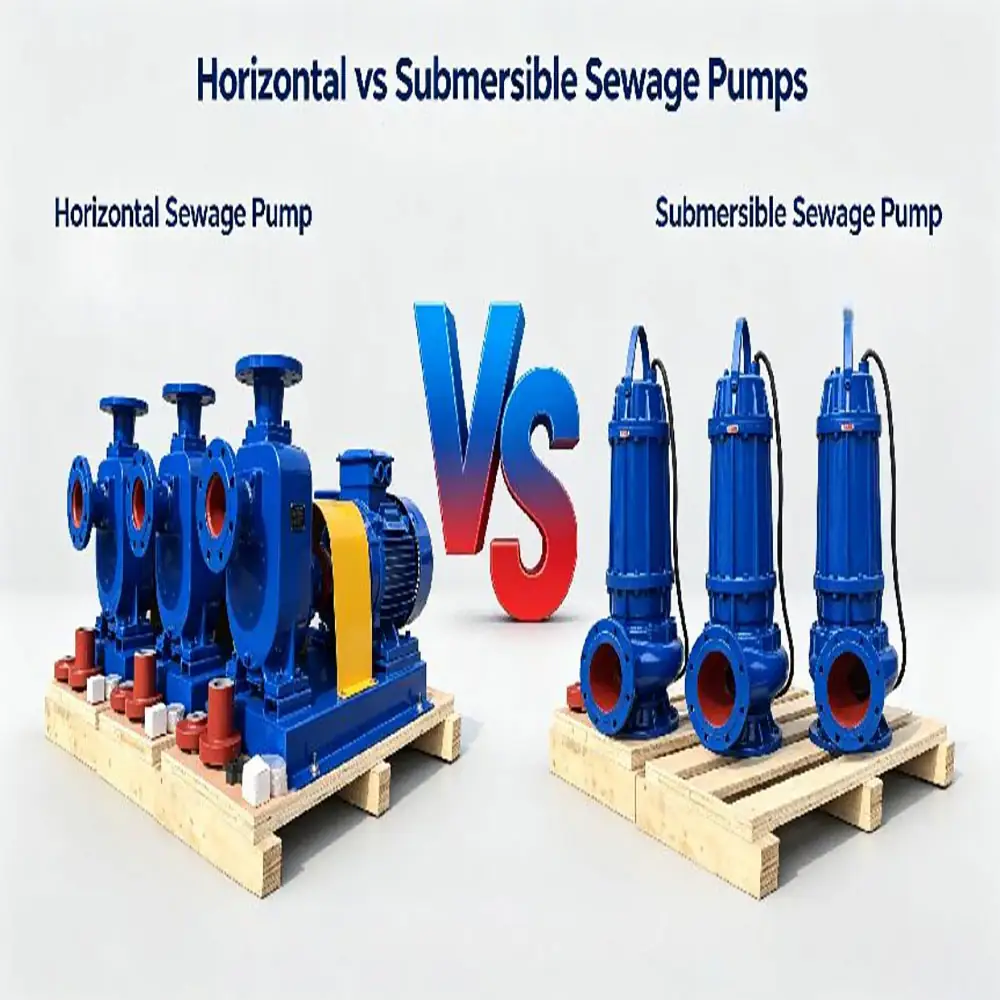

Horizontal vs Submersible Sewage Pumps | Specifications & Application

Stable and efficient sewage transportation is the core foundation of municipal drainage, industrial wastewater treatment, commercial building sewage discharge, and community flood control systems. The selection of sewage pumps directly determines the operational stability, working efficiency, and long-term maintenance costs of the entire wastewater conveying system.

Among all pump types, horizontal sewage pumps and submersible sewage pumps are the two most mainstream, cost-effective, and highly adaptable solutions for global sewage projects. This guide comprehensively introduces their features, advantages, technical parameters, typical models, and application scenarios to help engineers and project owners make accurate pump selections.

Submersible Sewage Pump: Compact, Low-Noise & Low-Cost Underwater Solution

A submersible sewage pump adopts an integrated motor and pump structure. The entire unit operates fully submerged in sewage without complex priming procedures, effectively avoiding cavitation and ensuring continuous and stable wastewater delivery. Thanks to its underwater working design, it is the preferred choice for projects with limited installation space and strict noise control requirements.

Core Advantages

1. No Pump Room Required & Space-Saving: It can be directly installed inside sewage tanks and collecting wells without constructing above-ground pump rooms, greatly reducing civil engineering costs and saving site space.
2. Ultra-Quiet & Eco-Friendly Operation: The water layer insulates mechanical operating noise, achieving near-silent operation. It fully meets the environmental standards of residential communities, office buildings, shopping malls, and hospitals.
3. Self-Priming & Simple Operation: Automatic water absorption without manual priming. Equipped with float switches, it realizes intelligent automatic start and stop according to water levels, minimizing manual supervision and operational costs.
4. High Durability & Low Failure Rate: The surrounding sewage continuously cools the motor during operation to prevent overheating damage. Equipped with high-quality double mechanical seals, it resists water leakage and sewage corrosion for long-term stable performance.
5. Excellent Clogging Resistance: Optimized flow channel design smoothly transports sewage containing solid particles, fiber debris, and suspended impurities, effectively preventing blockages and ensuring uninterrupted drainage.

Technical Parameters (WQ Series)

The mainstream WQ and QW series cover full working conditions for civil, commercial, and small-to-medium municipal sewage transportation with standardized and flexible specifications:

1. Flow: 5 – 2000m³/h (small models for household and basement drainage; large models for centralized pumping station drainage)
2. Head: 5 – 60m (suitable for conventional lifting, high-rise sewage discharge, and short-distance transportation)
3. Power: 0.37 – 315kW (0.55 – 15kW for regular civil and commercial use; high-power models for industrial working conditions)
4. Inlet & Outlet Diameter: 25 – 600mm, strong universality for various pipeline systems
5. Speed: 1450r/min / 2900r/min, stable operation with low vibration
6. Maximum Solid Particle Passage: 5 – 100mm, capable of passing sediment, fibers, and various impurities
7. Protection Grade: IP68, supports long-term underwater operation with excellent waterproof and corrosion resistance
8. Allowable Medium Temperature: ≤60℃, suitable for conventional normal-temperature sewage

Typical Application Scenarios

Basement drainage for residential buildings, commercial building sewage lifting, small and medium municipal sewage lift stations, construction site flood drainage, villa sewage discharge, and temporary emergency drainage projects. Ideal for sites with limited installation space and strict noise requirements.

Horizontal Sewage Pump: High-Power, High-Stability Pump for Long-Distance Transportation

The horizontal sewage pump is a surface-mounted dry-type pump with a horizontal layout. The pump and motor are fixed on a base above the water level. Featuring a simple structure and visible operating status, it is extremely convenient for daily inspection and maintenance. It is professionally designed for large-flow, high-head, long-distance, and 24-hour continuous high-load operation, serving as the core equipment for large-scale sewage treatment projects.

Core Advantages

1. 24-Hour High-Load Stable Operation: The horizontal structural design provides strong pressure resistance, supporting non-stop intensive operation with stable flow and head without obvious performance attenuation.
2. Easy Inspection & Low Maintenance Cost: Fully exposed above ground, all core components are accessible. Daily inspection, lubrication, troubleshooting, and parts replacement can be completed quickly without draining sewage or disassembling underwater structures.
3. Superior Long-Distance & High-Lift Capacity: High-power and high-head design realizes high-level and long-distance sewage transportation, solving the conveying difficulties of high-drop and remote sewage discharge.
4. Wide Medium Adaptability: It can handle complex media including slightly corrosive industrial wastewater, raw municipal sewage with large particles, and high-concentration sewage with a PH value of 5–9.
5. Stable Installation & Strong Compatibility: Fixed base installation ensures vibration-free and displacement-free operation. It is compatible with various pipeline systems and easy to integrate into standardized sewage treatment production lines.

Technical Parameters (ZW / P Series)

Mainstream ZW and P series horizontal sewage pumps are designed for high-flow, high-load, and long-cycle industrial and municipal working conditions with outstanding pressure resistance and operational stability:

1. Flow: 2 – 1500m³/h, meets continuous drainage demands of large factories and municipal pumping stations
2. Head: 3 – 300m, suitable for long-distance, high-drop, and high-level sewage transportation
3. Dirven method: motor or diesel engine
4. Power Range: 0.75 – 132kW, supports 24-hour uninterrupted high-load operation
5. Inlet & Outlet Diameter: 25 – 200mm, perfectly matching large-scale standard pipeline systems
6. Speed: 970 – 2950r/min, multiple speed options for customized flow and head requirements
7. Maximum Working Pressure: ≤1.0MPa, strong pressure resistance for high-pressure long-distance pipelines
8. Allowable Medium Temperature: ≤60℃; customized high-temperature models are available for special working conditions

Typical Application Scenarios

Large-scale municipal sewage treatment plants, industrial park wastewater transportation, factory production sewage discharge, urban large-scale drainage systems, and long-distance sewage pipeline transmission projects. The best choice for engineering projects requiring large water volume, long conveying distance, and long-term continuous operation.

Pump Selection Guide: Submersible vs Horizontal Sewage Pump

To achieve the best cost performance and operational effect, select pumps according to project scale and working conditions:

Choose Submersible Sewage Pumps: Medium and small flow drainage, limited installation space, strict noise control, simple and flexible installation, and low daily maintenance demand (residential, commercial, and temporary drainage projects).

Choose Horizontal Sewage Pumps: Large flow, high head, long-distance transportation, 24-hour high-load continuous operation, and regular professional maintenance scenarios (industrial and large municipal sewage treatment projects).

Conclusion

Both horizontal and submersible sewage pumps are mature and reliable wastewater transfer equipment with unique advantages. Submersible pumps featurecompact structure, low noise, flexible installation, and low operating cost, satisfying lightweight and environmentally friendly drainage demands for small and medium projects. Horizontal pumps focus on high efficiency, extreme stability, and strong high-load resistance, ensuring long-term stable operation of large-scale sewage treatment systems.

Kairun provide standardized high-quality submersible and horizontal sewage pumps, as well as one-stop services including professional model selection, installation guidance, and after-sales support, ensuring efficient and stable operation of your entire sewage system allyear round.
