The global submersible sewage pump market is growing steadily. According to the “2026 Global and China Submersible Sewage Pump Industry Trend Research and Outlook Report,” the market size in 2025 is about 6.84 billion US dollars, of which China accounts for more than 31.6%. This makes it a strategic priority for buyers in North America, Europe, and Southeast Asia to find reliable Chinese suppliers of submersible sewage pumps.
QYResearch’s industry forecast indicates that the market will continue to expand and is expected to reach US$7.36 billion by 2032, maintaining a stable compound annual growth rate of 5.0%. This is not just a purchase behavior, but also a long-term operation decision. High-quality Chinese submersible sewage pumps reduce the total cost of ownership through higher energy efficiency and lower maintenance costs, while ensuring compliance with international standards – which has become indispensable for cross-border projects.
Understanding Submersible Sewage Pumps
The submersible sewage pump is a sealed motor pump unit designed to operate completely submerged in sewage. According to the Chinese CJ/T 473-2015 standard, they can handle solid, fiber, and debris that would clog ordinary water pumps. Unlike ground-based units, submersible pumps use the surrounding liquid to cool the motor, allowing it to operate continuously in harsh conditions.
Key Selection Criteria for Submersible Sewage Pump Factory Sourcing
Certification Compliance Requirements
Manufacturers of quality submersible sewage pumps should hold and maintain valid certifications to prove their compliance with both Chinese and international regulatory frameworks. According to the EU’s Electrical Equipment Directive 2014/ 35/EU, water pumps entering the European market must obtain CE certification. In addition, ISO 9001 : 2015 certification for the quality management system and ISO 140001: 2015 for the environmental management system are considered essential qualifications for a reputable supplier.
For projects in China, compliance with the GB 32032-2015 or updated GB 32022-2022 energy efficiency standards issued by the China Standardization Administration is crucial for meeting local regulatory requirements and obtaining government project bids.
Core Technology Description
A world-class sewage pump factory stands out by achieving excellence in four key areas:
1.Submersible motor assembly: It utilises a Class F insulation system, with a built-in thermal overload protection thermistor that continuously monitors the winding temperature. The double-humidity detection probe installed in the oil chamber can immediately alarm when the mechanical seal starts to leak, thus preventing expensive motor rewinding.
2. Hydraulic design of impeller: The large-channel impeller with no blockage provides two configurations, single-channel and double-channel, and its solid through capacity reaches 100% relative to the pump inlet diameter. This design concept has been verified by hydraulic model research, significantly reducing the risk of operation blockage.
3. Cutting system options: For applications involving fiber materials such as textiles, hair, or plastic waste, an optional cutting disc with serrated cutting edges can be integrated into the pump inlet. The system will grind the solid into small particles that can flow freely through the impeller.
4. Installation coupling system: The automatic coupling system is used in conjunction with the rail, and the installation and removal of the pump from the wet well can be carried out without personnel entering restricted spaces, which conforms to the international restricted space safety regulations.
Spotlight: Tianjin Kairun Pump Industry Co., Ltd.
Tianjin Kairun Pump Industry Co., Ltd. Founded in 2005 and based in Tianjin’s Baodi District, Kairun has quickly established itself as a specialized submersible sewage pump factory with a focus on R&D and customized solutions. The company operates out of a 9,000+ square meter facility and employs over 200 professionals, serving clients in more than 100 countries.
What makes Kairun stand out among china sewage pump suppliers?
Technical capabilities: Kairun’s engineering team uses advanced fluid dynamics software (CFD) and structural optimization tools (ANSYS) for product development. They’ve secured multiple patents, including dry-installation sewage pump designs, anti-crystallization submersible pump technology, and dual-impeller fully axial flow pump structures.

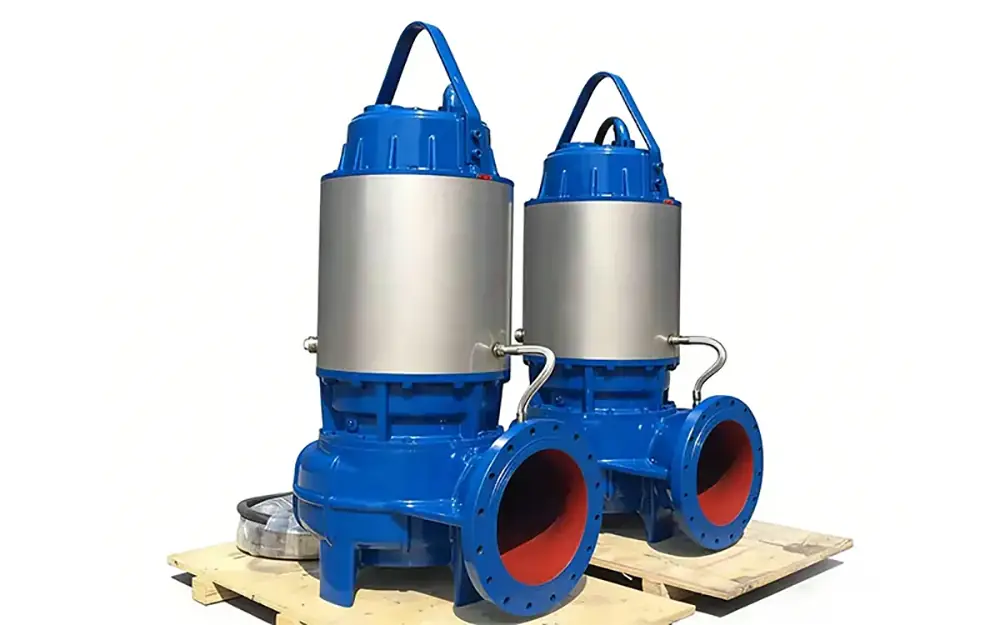

Product range: Beyond WQ series submersible sewage pumps, Kairun manufactures submersible axial (mixed) flow pumps, vertical axial flow pumps, submersible slurry pumps, mine-duty pumps, and chemical process pumps. Their WQ series covers:
- Flow rate: 10–4,000 m³/h
- Head: 6–57 meters
- Power: 0.75–315 kW
- Diameter range: DN50–DN600
Quality assurance: Kairun holds ISO 9001 certification and CE certification, and their products are designed to meet international standards. Key features include:
Dual mechanical seals for leak protection
Built-in moisture and overheat sensors that trigger alarms before motor damage occurs
High-efficiency motor designs that meet national energy standards
Customization and service: One of Kairun’s core strengths is non-standard product customization. They work directly with clients to adapt pump materials (cast iron, stainless steel 304/316, duplex stainless steel) and configurations to specific operating conditions. Their 24/7 technical support team provides rapid response—within 24 hours for clients within 1,000 km, and within 48 hours for those farther afield
Key applications: Kairun’s pumps are deployed across drainage and flood control, municipal wastewater, chemical industry, and agricultural irrigation. Notable projects include the Baihetan Hydropower Station, Saudi desalination plants, and Shanghai’s Qiantan CBD smart pump rooms—demonstrating their capability in high-stakes environments.
If you’re looking for a submersible sewage pump factory that combines engineering depth with flexible, client-focused service, Kairun is worth a serious look alongside the larger players below.
Application Scenarios and Industry Distribution
According to the China Pump Industry Association’s Annual Industry Statistics Report 2025, demand for china sewage pumps breaks down as follows: municipal wastewater treatment leads at 40%, followed by construction drainage at 25%, industrial wastewater treatment at 20%, and other applications (mining, agriculture) at 15%. This spread reflects the versatility of modern submersible sewage pumps across both continuous and intermittent duty cycles.
Real-World Performance Case Study
There is a long-term problem of water pump blockage in a residential area in southern China, and it needs to be manually cleaned 3 to 4 times a month. During the rainy season, the basement water caused frequent complaints from residents. The property manager installed eight 5.5 kW WQ series cutting submersible pumps, equipped with automatic coupling and liquid level control system. During the 12-month operation period, no more blockages occurred – the cutting system shredded the waste paper, plastic and textiles that used to cause shutdowns in the past. The drainage response speed has been improved by 60%, the maintenance cost has been reduced by 70%, and the problem of waterlogging complaints has been completely solved.
Extreme Environment Adaptation
According to the operating environment, the manufacturer of submersible sewage pump provides special configuration:
- High-temperature medium: The medium temperature rated range of the standard pump is 0 ~ 40 °C, while the high-temperature variant pump equipped with special seals and motor windings can operate continuously at 80 ~ 100 °C, suitable for industrial hot water discharge applications.
- Corrosive media: For chemical wastewater, seawater or acid-base wastewater, the contact parts can be selected from 304 stainless steel, 316L stainless steel or duplex stainless steel materials, which have excellent corrosion resistance.
- High-sand medium: In applications such as mining or dredging where abrasive particles are present, the impeller and volute can be made of high chromium alloy, with a hardness of more than HRC58. Compared with standard cast iron, the service life can be extended to 5 times.
- flammable and explosive environment: For petrochemical or coal mine applications, explosion-proof motors meeting the ExdIIBT4 certification standard can be provided. “
Competitive Advantages of Chinese Manufacturers
Three Key Differentiators
Third-party testing and field data show China’s leading sewage pump suppliers have clear advantages:
- Non-clogging performance: Large-channel dual-channel impeller design achieves 100% solid passage. Data shows 85% fewer blockages than traditional designs.
- Energy efficiency: High-efficiency models run 5–8 percentage points above industry average per GB 32022-2022, delivering measurable energy savings.
- Lifecycle cost: High-chromium impellers last 3x longer than cast iron. At 50–60% of import prices, total lifecycle cost drops over 50% in 10 years.
Customer ROI
Real installation data shows:
- Electricity: 8–12% less energy use. A 15kW pump running 6,000 hrs/year saves 7,200–10,800 kWh annually. Payback: ~2.5 years.
- Maintenance: Non-clogging design cuts manual cleaning, reducing labor costs by over 70%.
- Downtime: MTBF jumps from 3,000 to 8,000 hours, cutting unplanned downtime losses by over 60%.
Patented Technology
- Chinese submersible sewage pump manufacturers hold key patents:
- Dual-channel non-clog impeller: Optimizes flow for maximum solid handling.
- Automatic coupling: Enables quick installation without bolt flanges.
- Cutting impeller & cutter disc: Shreds fibers and plastics before they reach the impeller
Frequently Asked Questions (FAQ)
Q1: What should be done when the submersible sewage pump is blocked?
A: Immediately cut off the power supply to the pump, use the rail system or lifting chain to lift the pump body from the collection well, and manually remove the debris in the impeller channel and the casing. If frequent blockages occur, consider upgrading to a larger channel or a cutting-type impeller model, or installing a pre-screen or crusher upstream of the pump suction inlet.
Q2: What causes the humidity alarm of the submersible sewage pump?
A: A humidity alarm usually indicates that the mechanical seal has worn out or is damaged, causing water to enter the oil chamber. This situation requires stopping the pump immediately and replacing the seal. Continued operation may cause water to enter the motor windings, which may cause the motor to burn out severely, requiring a complete rewinding or replacement of the motor.
Q3: Can the submersible sewage pump run above the water surface (dry run)?
A: No. The submersible motor is cooled by the surrounding water or the liquid being transported. Operating above the liquid level or in a dry well without proper cooling measures can lead to a rapid increase in temperature and thermal damage. The dry running time should not exceed 30 seconds. For applications that require dry well installation, consider using dry installation submersible pumps with external cooling jackets.
Q4: What is the difference between automatic coupling and mobile installation?
A: The automatic coupling system is designed for permanent installation in wet wells and is equipped with guide rails, allowing the pump to slide down and automatically seal with the fixed discharge flange. This structure allows maintenance personnel to lift and lower the pump without entering the wet well. Mobile installation uses flexible hose or flange connection, without guide rail, suitable for temporary drainage, construction site drainage and emergency flood response without permanent infrastructure. “
Conclusion
Picking the right submersible sewage pump manufacturer means weighing specs, certifications, application needs, and lifecycle costs. Chinese manufacturers have proven their competitiveness with independently verified products used across municipal, construction, and industrial sectors.
Working with certified china sewage pump suppliers that have strong track records and technical support secures reliable pumps at competitive costs. As the global market heads toward $7.36 billion by 2032, the supplier relationships you build today will pay off long-term.
